Trade and Globalization

This article was first published in 2014; last revised in October 2018.

Summary

In this entry we analyze available data and research on international trade patterns, including the determinants and consequences of globalization over the last couple of decades. Here is an overview of the main points we cover below.

Related research entries in Our World in Data:

Trade has changed the world economy

Trade has grown remarkably over the last century

The integration of national economies into a global economic system has been one of the most important developments of the last century. This process of integration, often called Globalization, has materialized in a remarkable growth in trade between countries.

The chart here shows the value of world exports over the period 1800-2014. These estimates are in constant prices (i.e. have been adjusted to account for inflation) and are indexed at 1913 values.

This chart shows an extraordinary growth in international trade over the last couple of centuries: Exports today are more than 40 times larger than in 1913.

You can click on the option marked ‘Linear’, on top of the vertical axis, to change into a logarithmic scale. This will help you see that, over the long run, growth has roughly followed an exponential path.

Trade has grown more than proportionately with GDP

The chart above shows how much more trade we have today relative to a century ago. But what about trade relative to total economic output?

Over the last couple of centuries the world economy has experienced sustained positive economic growth, so looking at changes in trade relative to GDP offers another interesting perspective.

The next chart plots the value of trade in goods relative to GDP (i.e. the value of merchandise trade as a share of global economic output).

Up to 1870, the sum of worldwide exports accounted for less than 10% of global output. Today, the value of exported goods around the world is close to 25%. This shows that over the last hundred years of economic growth, there has been more than proportional growth in global trade.

(NB. In this chart you can add countries by choosing the option on the bottom left; or you can compare countries around the world by clicking on ‘Map’ on the chart.)

Today trade is a fundamental part of economic activity everywhere

In today’s global economic system, countries exchange not only final products, but also intermediate inputs. This creates an intricate network of economic interactions that cover the whole world.

The interactive data visualization, created by the London-based data visualisation studio Kiln and the UCL Energy Institute, gives us an insight into the complex nature of trade. It plots the position of cargo ships across the oceans.

Trade generates efficiency gains

The raw correlation between trade and growth

Over the last couple of centuries the world economy has experienced sustained positive economic growth, and over the same period, this process of economic growth has been accompanied by even faster growth in global trade.

In a similar way, if we look at country-level data from the last half century we find that there is also a correlation between economic growth and trade: countries with higher rates of GDP growth also tend to have higher rates of growth in trade as a share of output. This basic correlation is shown in the chart here, where we plot average annual change in real GDP per capita, against growth in trade (average annual change in value of exports as a share of GDP).1

Is this statistical association between economic output and trade causal?

Among the potential growth-enhancing factors that may come from greater global economic integration are: Competition (firms that fail to adopt new technologies and cut costs are more likely to fail and to be replaced by more dynamic firms); Economies of scale (firms that can export to the world face larger demand, and under the right conditions, they can operate at larger scales where the price per unit of product is lower); Learning and innovation (firms that trade gain more experience and exposure to develop and adopt technologies and industry standards from foreign competitors).2

Are these mechanisms supported by the data? Let’s take a look at the available empirical evidence.

Causality: Evidence from cross-country differences in trade, growth and productivity

When it comes to academic studies estimating the impact of trade on GDP growth, the most cited paper is Frankel and Romer (1999).3

In this study, Frankel and Romer used geography as a proxy for trade, in order to estimate the impact of trade on growth. This is a classic example of the so-called instrumental variable approach. The idea is that a country’s geography is fixed, and mainly affects national income through trade. So if we observe that a country’s distance from other countries is a powerful predictor of economic growth (after accounting for other characteristics), then the conclusion is drawn that it must be because trade has an effect on economic growth. Following this logic, Frankel and Romer find evidence of a strong impact of trade on economic growth.

Other papers have applied the same approach to richer cross-country data, and they have found similar results. A key example is Alcalá and Ciccone (2004).4

This body of evidence suggests trade is indeed one of the factors driving national average incomes (GDP per capita) and macroeconomic productivity (GDP per worker) over the long run.5

Causality: Evidence from changes in labor productivity at the firm level

If trade is causally linked to economic growth, we would expect that trade liberalization episodes also lead to firms becoming more productive in the medium, and even short run. There is evidence suggesting this is often the case.

Pavcnik (2002) examined the effects of liberalized trade on plant productivity in the case of Chile, during the late 1970s and early 1980s. She found a positive impact on firm productivity in the import-competing sector. And she also found evidence of aggregate productivity improvements from the reshuffling of resources and output from less to more efficient producers. 6

Bloom, Draca and Van Reenen (2016) examined the impact of rising Chinese import competition on European firms over the period 1996-2007, and obtained similar results. They found that innovation increased more in those firms most affected by Chinese imports. And they found evidence of efficiency gains through two related channels: innovation increased and new existing technologies were adopted within firms; and aggregate productivity also increased because employment was reallocated towards more technologically advanced firms.7

Wrapping up: Trade does generate efficiency gains

On the whole, the available evidence suggests trade liberalization does improve economic efficiency. This evidence comes from different political and economic contexts, and includes both micro and macro measures of efficiency.

This result is important, because it shows that there are gains from trade. But of course efficiency is not the only relevant consideration here. As we discuss in a companion blog post, the efficiency gains from trade are not generally equally shared by everyone. The evidence from the impact of trade on firm productivity confirms this: “reshuffling workers from less to more efficient producers” means closing down some jobs in some places. Because distributional concerns are real it is important to promote public policies – such as unemployment benefits and other safety-net programs – that help redistribute the gains from trade.

When a country opens up to trade, the demand and supply of goods and services in the economy shift. As a consequence, local markets respond, and prices change. This has an impact on households, both as consumers and as wage earners.

The implication is that trade has an impact on everyone. It’s not the case that the effects are restricted to workers from industries in the trade sector; or to consumers who buy imported goods. The effect of trade extends to everyone because markets are interlinked, so imports and exports have knock-on effects on all prices in the economy, including those in non-traded sectors.

Economists usually distinguish between “general equilibrium consumption effects” (i.e. changes in consumption that arise from the fact that trade affects the prices of non-traded goods relative to traded goods) and “general equilibrium income effects” (i.e. changes in wages that arise from the fact that trade has an impact on the demand for specific types of workers, who could be employed in both the traded and non-traded sectors).

Considering all these complex interrelations, it’s not surprising that economic theories predict that not everyone will benefit from international trade in the same way. The distribution of the gains from trade depends on what different groups of people consume, and which types of jobs they have, or could have.

(NB. You can read more about these economic concepts, and the related predictions from economic theory, in Chapter 18 of the textbook The Economy: Economics for a Changing World.)

Evidence from Chinese imports and their impact on factory workers in the US

The most famous study looking at this question is Autor, Dorn and Hanson (2013): “The China syndrome: Local labor market effects of import competition in the United States”.8

In this paper, Autor and coauthors looked at how local labor markets changed in the parts of the country most exposed to Chinese competition, and they found that rising exposure increased unemployment, lowered labor force participation, and reduced wages. Additionally, they found that claims for unemployment and healthcare benefits also increased in more trade-exposed labor markets.

The visualization here is one of the key charts from their paper. It’s a scatter plot of cross-regional exposure to rising imports, against changes in employment. Each dot is a small region (a ‘commuting zone’ to be precise). The vertical position of the dots represents the percent change in manufacturing employment for working age population; and the horizontal position represents the predicted exposure to rising imports (exposure varies across regions depending on the local weight of different industries).

The trend line in this chart shows a negative relationship: more exposure goes together with less employment. There are large deviations from the trend (there are some low-exposure regions with big negative changes in employment); but the paper provides more sophisticated regressions and robustness checks, and finds that this relationship is statistically significant.

This result is important because it shows that the labor market adjustments were large. Many workers and communities were affected over a long period of time.9

But it’s also important to keep in mind that Autor and colleagues are only giving us a partial perspective on the total effect of trade on employment. In particular, comparing changes in employment at the regional level misses the fact that firms operate in multiple regions and industries at the same time. Indeed, Ildikó Magyari recently found evidence suggesting the Chinese trade shock provided incentives for US firms to diversify and reorganize production.10

So companies that outsourced jobs to China often ended up closing some lines of business, but at the same time expanded other lines elsewhere in the US. This means that job losses in some regions subsidized new jobs in other parts of the country.

On the whole, Magyari finds that although Chinese imports may have reduced employment within some establishments, these losses were more than offset by gains in employment within the same firms in other places. This is no consolation to people who lost their job. But it is necessary to add this perspective to the simplistic story of “trade with China is bad for US workers”.

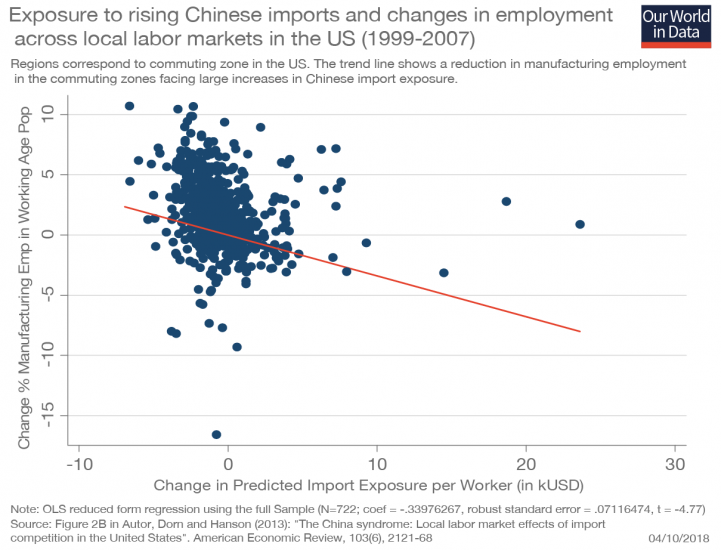

Exposure to rising Chinese imports and changes in employment across local labor markets in the US (1999-2007) – Autor, Dorn and Hanson (2013)
Autor et al fig 2b 01

Evidence from the expansion of trade in India and the impact on poverty reductions

Another important paper in this field is Topalova (2010): “Factor immobility and regional impacts of trade liberalization: Evidence on poverty from India”.11

In this paper Topalova looks at the impact of trade liberalization on poverty across different regions in India, using the sudden and extensive change in India’s trade policy in 1991. She finds that rural regions that were more exposed to liberalization, experienced a slower decline in poverty, and had lower consumption growth.

In the analysis of the mechanisms underlying this effect, Topalova finds that liberalization had a stronger negative impact among the least geographically mobile at the bottom of the income distribution, and in places where labor laws deterred workers from reallocating across sectors.

The evidence from India shows that (i) discussions that only look at “winners” in poor countries and “losers” in rich countries miss the point that the gains from trade are unequally distributed within both sets of countries; and (ii) context-specific factors, like worker mobility across sectors and geographic regions, are crucial to understand the impact of trade on incomes.

Evidence from other studies

  • Donaldson (2018) uses archival data from colonial India to estimate the impact of India’s vast railroad network. He finds railroads increased trade, and in doing so they increased real incomes (and reduced income volatility).12
  • Porto (2006) looks at the distributional effects of Mercosur on Argentine families, and finds this regional trade agreement led to benefits across the entire income distribution. He finds the effect was progressive: poor households gained more than middle-income households, because prior to the reform, trade protection benefitted the rich disproportionately.13
  • Trefler (2004) looks at the Canada-US Free Trade Agreement and finds there was a group who bore “adjustment costs” (displaced workers and struggling plants) and a group who enjoyed “long-run gains” (consumers and efficient plants). 14

The fact that trade negatively affects labor market opportunities for specific groups of people does not necessarily imply that trade has a negative aggregate effect on household welfare. This is because, while trade affects wages and employment, it also affects the prices of consumption goods. So households are affected both as consumers and as wage earners.

Most studies focus on the earnings channel, and try to approximate the impact of trade on welfare by looking at how much wages can buy, using as reference the changing prices of a fixed basket of goods.

This approach is problematic because it fails to consider welfare gains from increased product variety, and obscures complicated distributional issues such as the fact that poor and rich individuals consume different baskets so they benefit differently from changes in relative prices.15

Ideally, studies looking at the impact of trade on household welfare should rely on fine-grained data on prices, consumption and earnings. This is the approach followed in Atkin, Faber, and Gonzalez-Navarro (2018): “Retail globalization and household welfare: Evidence from Mexico”.16

Atkin and coauthors use a uniquely rich dataset from Mexico, and find that the arrival of global retail chains led to reductions in the incomes of traditional retail sector workers, but had little impact on average municipality-level incomes or employment; and led to lower costs of living for both rich and poor households.

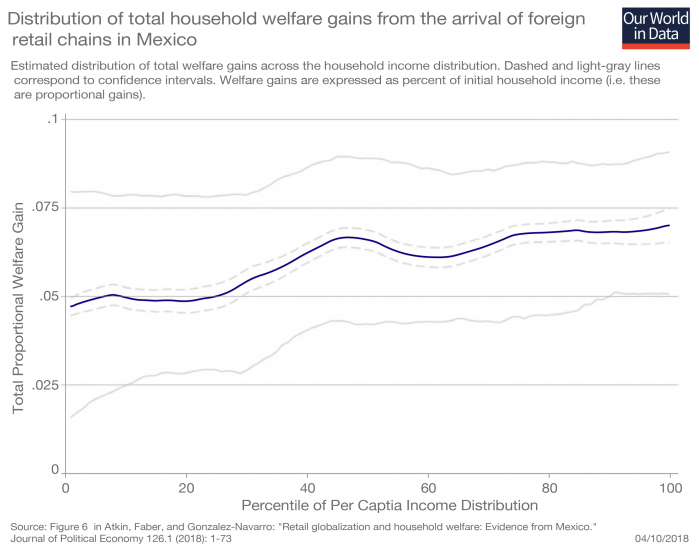

The chart here shows the estimated distribution of total welfare gains across the household income distribution (the light-gray lines correspond to confidence intervals). These are proportional gains, and are expressed as percent of initial household income.

As we can see, there is a net positive welfare effect across all income groups; but these improvements in welfare are regressive, in the sense that richer households gain proportionally more (about 7.5 percent gain compared to 5 percent).17

Evidence from other countries confirms this is not an isolated case – the expenditure channel really seems to be an important and understudied source of household welfare. Giuseppe Berlingieri, Holger Breinlich, Swati Dhingra, for example, investigate the consumer benefits from trade agreements implemented by the EU between 1993 and 2013; and they find that these trade agreements increased the quality of available products, which translated into a cumulative reduction in consumer prices equivalent to savings of €24 billion per year for EU consumers.18

Distribution of total household welfare gains from the arrival of foreign retail chains in Mexico – Atkin, Faber, and Gonzalez-Navarro (2018)
Atkin et al 2018 lower opacity

Wrapping up: Net welfare effects and implications

The available evidence shows that, for some groups of people, trade has a negative effect on wages and employment opportunities; and at the same time it has a large positive effect via lower consumer prices and increased availability of products.

Two points are worth emphasising.

For some households, the net effect is positive. But for some households that’s not the case. In particular, workers who lose their job can be affected for extended periods of time, so the positive effect via lower prices is not enough to compensate them for the reduction in earnings.

On the whole, if we aggregate changes in welfare across households, the net effect is usually positive. But this is hardly a consolation for those who are worse off.

This highlights a complex reality: There are aggregate gains from trade, but there are also real distributional concerns. Even if trade is not a major driver of income inequalities, it’s important to keep in mind that public policies, such as unemployment benefits and other safety-net programs, can and should help redistribute the gains from trade.

The “two waves of globalization”

The first “wave of globalization” started in the 19th century, the second one after WW2

The following visualization presents a compilation of available trade estimates, showing the evolution of world exports and imports as a share of global economic output.

This metric (the ratio of total trade, exports plus imports, to global GDP) is known as the ‘openness index’. The higher the index, the higher the influence of trade transactions on global economic activity.19

As we can see, until 1800 there was a long period characterized by persistently low international trade – globally the index never exceeded 10% before 1800. This then changed over the course of the 19th century, when technological advances triggered a period of marked growth in world trade – the so-called ‘first wave of globalization’.

The first wave of globalization came to an end with the beginning of the First World War, when the decline of liberalism and the rise of nationalism led to a slump in international trade. In the chart we see a large drop in the interwar period.

After the Second World War trade started growing again. This new – and ongoing – wave of globalization has seen international trade grow faster than ever before. Today the sum of exports and imports across nations amounts to more than 50% of the value of total global output.

(NB. Klasing and Milionis (2014), which is one of the sources in the chart, published an additional set of estimates under an alternative specification. Similarly, for the period 1960-2015, the World Bank’s World Development Indicators published an alternative set of estimates, which are similar but not identical to those included from the Penn World Tables (9.1). You find all these alternative overlapping sources in this comparison chart.)

Before the first wave of globalization, trade was driven mostly by colonialism

Over the early modern period, transoceanic flows of goods between empires and colonies accounted for an important part of international trade. The following visualizations provides a comparison of intercontinental trade, in per capita terms, for different countries.

As we can see, intercontinental trade was very dynamic, with volumes varying considerably across time and from empire to empire.

Leonor Freire Costa, Nuno Palma, and Jaime Reis, who compiled and published the original data shown here, argue that trade, also in this period, had a substantial positive impact on the economy.20

The first wave of globalization was marked by the rise and collapse of intra-European trade

The following visualization shows a detailed overview of Western European exports by destination. Figures correspond to export-to-GDP ratios (i.e. the sum of the value of exports from all Western European countries, divided by total GDP in this region). Using the option labeled ‘relative’, at the bottom of the chart, you can see the proportional contribution of each region to total Western European exports.

This chart shows that growth in Western European trade throughout the 19th century was largely driven by trade within the region: In the period 1830-1900 intra-European exports went from 1% of GDP to 10% of GDP; and this meant that the relative weight of intra-European exports doubled over the period (in the ‘relative’ view you can see the changing composition of exports by destination, and you can check that the weight of intra-European trade went from about one third to about two thirds over the period). But this process of European integration then collapsed sharply in the interwar period.

After the Second World War trade within Europe rebounded, and from the 1990s onwards exceeded the highest levels of the first wave of globalization. In addition Western Europe then started to increasingly trade with Asia, the Americas, and to a smaller extent Africa and Oceania.

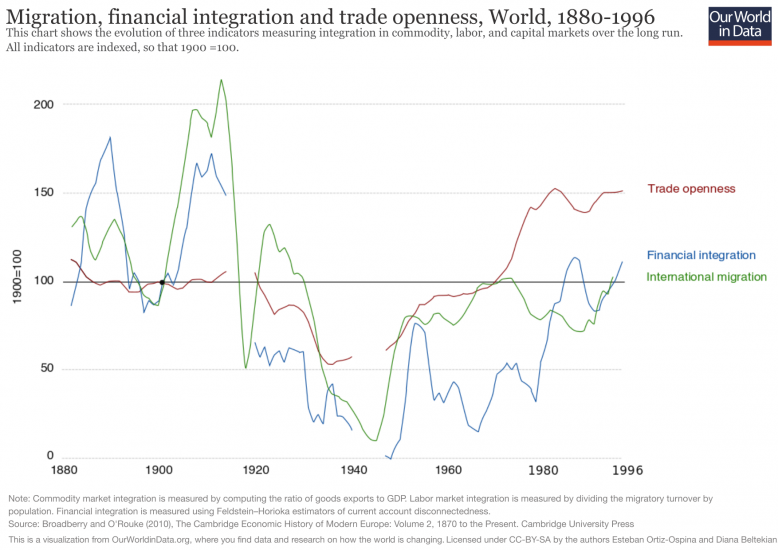

The next graph, from Broadberry and O’Rourke (2010)21, shows another perspective on the integration of the global economy and plots the evolution of three indicators measuring integration across different markets – specifically goods, labor, and capital markets.

The indicators in this chart are indexed, so they show changes relative to the levels of integration observed in 1900. This gives us another viewpoint to understand how quickly global integration collapsed with the two World Wars.

(NB. Integration in the goods markets is measured here through the ‘trade openness index’, which is defined by the sum of exports and imports as share of GDP. In this interactive chart you can explore trends in trade openness over this period for a selection of European countries.)

Merchandise exports by continent 69ebe1b07c5ebff673e0e146956d2fcc v13 850x600
Click to open interactive version
Migration, financial integration and trade openness, World, 1880-1996 (indexed to 1900 = 100) – Cambridge Economic History Vol. 222
Migration, Financial integration, and Trade openness from 1880–1996

The second wave of globalization was enabled by technology

The world-wide expansion of trade after the Second World War was largely possible because of reductions in transaction costs stemming from technological advances, such as the development of commercial civil aviation, the improvement of productivity in the merchant marines, and the democratization of the telephone as the main mode of communication. The visualization shows how, at the global level, costs across these three variables have been going down since 1930.

The reductions in transaction costs had an impact, not only on the volumes of trade, but also on the types of exchanges that were possible and profitable.

The first wave of globalization was characterized by inter-industry trade. This means that countries exported goods that were very different to what they imported – England exchanged machines for Australian wool and Indian tea. As transaction costs went down, this changed. In the second wave of globalization we are seeing a rise in intra-industry trade (i.e. the exchange of broadly similar goods and services is becoming more and more common). France, for example, now both imports and exports machines to and from Germany.

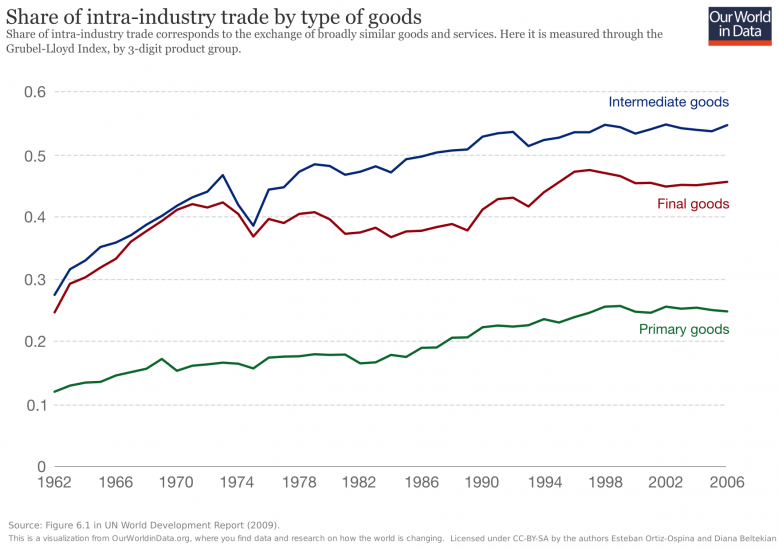

The following visualization, from the UN World Development Report (2009), plots the fraction of total world trade that is accounted for by intra-industry trade, by type of goods. As we can see, intra-industry trade has been going up for primary, intermediate and final goods.

This pattern of trade is important because the scope for specialization increases if countries are able to exchange intermediate goods (e.g. auto parts) for related final goods (e.g. cars).

Real transport and communication costs v4 850x600
Click to open interactive version
Share of intraindustry trade by type of goods – Figure 6.1 in UN World Development Report (2009)
GrubelLloyd_WDR09

Two centuries of trade, country by country

Above we took a look at the broad global trends over the last two centuries. Let’s now zoom in on country-level trends over this long and dynamic period.

This chart plots estimates of the value of trade in goods, relative to total economic activity (i.e. export-to-GDP ratios).

These historical estimates obviously come with a large margin of error (in the measurement section below we discuss the data limitations); yet they offer an interesting perspective.

You can add more series by clicking on the option ‘ Add country ’. Each country tells a different story. If you add the Netherlands, for example, you will see how important the Dutch Golden Age was.

(NB. Here is the same chart but showing imports, rather than exports.)

Changing trade partners

In the next chart we plot, country by country, the regional breakdown of exports. India is shown by default, but you can switch country using the option ‘Change entity’.

Using the option ‘relative’, at the bottom of the chart, you can see the proportional contribution of purchases from each region. For example: We see that 48% of the total value of Indian exports in 2014 went to Asian countries.

This gives us an interesting perspective on the changing nature of trade partnerships. In India, we see the rising importance of trade with Africa – this is a pattern that we discuss in more detail below.

How much do countries trade?

Trade openness around the world

The so-called trade openness index is an economic metric calculated as the ratio of country’s total trade (the sum of exports plus imports) to the country’s gross domestic product.

This metric gives us an idea of integration, because it captures all incoming and outgoing transactions. The higher the index the larger the influence of trade on domestic economic activities.

The visualization presents a world map showing the trade openness index country by country. You can explore country-specific time series by clicking on a country, or by using the ‘Chart’ tab.

For any given year, we see that there is a lot of variation across countries. The weight of trade in the US economy, for example, is much lower than in other rich countries.

If you press the play button in the map, you can see changes over time. This reveals that, despite the great variation between countries, there is a common trend: Over the last couple of decades trade openness has gone up in most countries.

Exports and imports in real dollars

Expressing trade values as a share of GDP tells us the importance of trade in relation to the size of economic activity. Let’s now take a look at trade in monetary terms – this tells us the importance of trade in absolute, rather than relative terms.

The chart shows the value of exports (goods plus services) in dollars, country by country. All estimates are expressed in constant 2010 dollars (i.e. all values have been adjusted to correct for inflation).

The main takeaway here are the country-specific trends, which are positive and more pronounced than in the charts showing shares of GDP. This is not surprising: most countries today produce more than a couple of decades ago; and at the same time they trade more of what they produce.

You can plot trends by region using the option ‘ Add country ’.

(NB. Here is the same chart, but showing imports rather than exports.)

What do countries trade?

Trade in goods vs Trade in services

Trade transactions include goods (tangible products that are physically shipped across borders by road, rail, water, or air) and services (intangible commodities, such as tourism, financial services, and legal advice).

Many traded services make merchandise trade easier or cheaper—for example, shipping services, or insurance and financial services.

Trade in goods has been happening for millenia; while trade in services is a relatively recent phenomenon.

In some countries services are today an important driver of trade: In the UK services account for about 45% of all exports; and in the Bahamas almost all exports are services (about 87% in 2016).

In other countries the opposite is true: In Nigeria and Venezuela services accounted for around 2% and 3% of exports, respectively, in 2014.

Globally, trade in goods accounts for the majority of trade transactions. But as this chart shows, the share of services in total global exports has increased, from 17% in 1979 to 24% in 2017.

(NB. This interactive chart shows trade in services as share of GDP across countries and regions.)

Domestic vs Foreign value added in exports

Firms around the world import goods and services, in order to use them as inputs to produce goods and services that are later exported. The imported goods and services incorporated in a country’s exports are a key indicator of economic integration – they tell us something about ‘global value chains’, where the different stages of the production process are located across different countries.

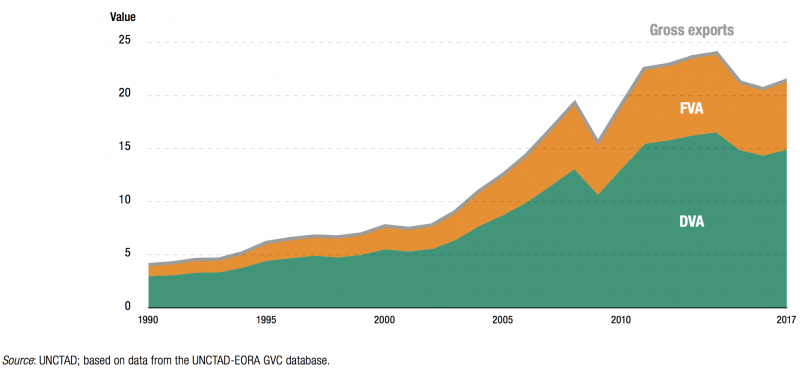

The chart, from UNCTAD’s World Investment Report 2018 – Investment and New Industrial Policies, shows trends of gross exports, broken down into domestic and foreign value added. That is, the share of the value of exports that comes from foreign inputs.

Today, about 30% of the value of global exports comes from foreign inputs. In 1990, the share was about 25%.

Foreign value added in trade peaked in 2010–2012 after two decades of continuous increase. This is consistent with the fact that, after the global financial crisis, there has been a slowdown in the rate of growth of trade in goods and services, relative to global GDP. This is a sign that global integration stalled after the financial crisis.

(NB. The integration of global value chains is a common source of measurement error in trade data, because it makes it hard to correctly attribute the origin and destination of goods and services. We discuss this in more detail below.)

Gross global exports, broken down into domestic value added (DVA) and foreign value added (FVA)– World Investment Report (2018)
Unctad fva

How are trade partnerships changing?

Bilateral trade is becoming increasingly common

If we consider all pairs of countries that engage in trade around the world, we find that in the majority of cases, there is a bilateral relationship today: Most countries that export goods to a country, also import goods from the same country.

The interactive visualization shows this.23

In this chart, all possible country pairs are partitioned into three categories: the top portion represents the fraction of country pairs that do not trade with one-another; the middle portion represents those that trade in both directions (they export to one-another); and the bottom portion represents those that trade in one direction only (one country imports from, but does not export to, the other country).

As we can see, bilateral trade is becoming increasingly common (the middle portion has grown substantially). But it remains true that many countries still do not trade with each other at all (in 2014 about 25% of all country-pairs recorded no trade).

South-South trade is becoming increasingly important

The visualization here shows the share of world merchandise trade that corresponds to exchanges between today’s rich countries and the rest of the world.

The ‘rich countries’ in this chart are: Australia, Austria, Belgium, Canada, Cyprus, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Israel, Italy, Japan, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom and the United States. ‘Non-rich countries’ are all the other countries in the world.

As we can see, up until the Second World War the majority of trade transactions involved exchanges between this small group of rich countries. But this has been changing quickly over the last couple of decades, and today trade between non-rich countries is just as important as trade between rich countries.

In the past two decades China has been a key driver of this dynamic: the UN Human Development Report (2013) estimates that between 1992 and 2011, China’s trade with Sub-Saharan Africa rose from $1 billion to more than $140 billion.

(NB. Here is a stacked area chart showing the total composition of exports by partnership. It’s the same data, but plotted with stacked series.)

The majority of preferential trade agreements are between emerging economies

The last few decades have not only seen an increase in the volume of international trade, but also an increase in the number of preferential trade agreements through which exchanges take place. A preferential trade agreement is a trade pact that reduces tariffs between the participating countries for certain products.

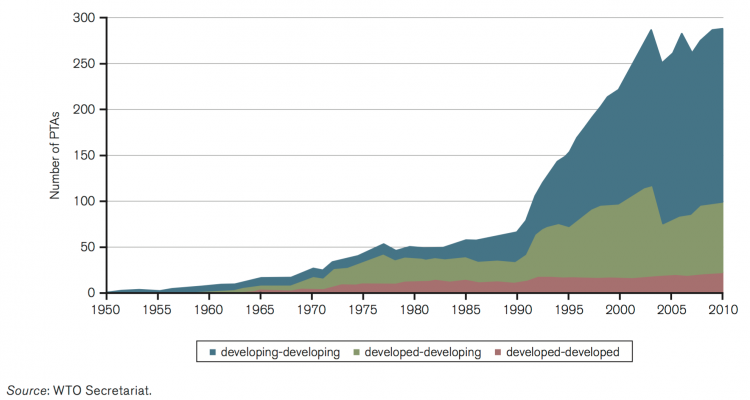

The visualization here shows the evolution of the cumulative number of preferential trade agreements that are in force across the world, according to the World Trade Organization (WTO). These numbers include notified and non-notified preferential agreements (the source reports that only about two-thirds of the agreements currently in force have been notified to the WTO), and are disaggregated by country groups.

This figure shows the increasingly important role of trade between developing countries (South-South trade), vis-a-vis trade between developed and developing countries (North-South trade). In the late 1970s, North-South agreements accounted for more than half of all agreements – in 2010, they accounted for about one quarter. Today, the majority of preferential trade agreements are between developing economies.

Number of preferential trade agreements in force by country group, 1950-2010 – Figure B1 in WTO Trade Report (2011)
ptas_wto2011

Trading patterns have been changing quickly in middle income countries

The increase in trade among emerging economies over the last half century has been accompanied by an important change in the composition of exported goods in these countries.

The next visualization plots the share of food exports in each country’s total exported merchandise. These figures, produced by the World Bank, correspond to the Standard International Trade Classification, in which ‘food’ includes, among other goods, live animals, beverages, tobacco, coffee, oils, and fats.

Two points stand out. First, there has been a substantial decrease in the relative importance of food exports since 1960s in most countries (although globally in the last decade it has gone up slightly). And second, this decrease has been largest in middle income countries, particularly in Latin America. Colombia is a notable case in point: food went from 77% of merchandise exports in 1962, to 15.9% in 2015.

Regarding levels, as one would expect, in high income countries food still accounts for a much smaller share of merchandise exports than in most low- and middle-income-countries.

Explaining trade patterns: Theory and Evidence

In this section

Comparative advantage

Theory: What is ‘comparative advantage’ and why does it matter to understand trade?

In economic theory, the ‘economic cost’ – or the ‘opportunity cost’ – of producing a good is the value of everything you need to give up in order to produce that good.

Economic costs include physical inputs (the value of the stuff you use to produce the good), plus forgone opportunities (when you allocate scarce resources to a task, you give up alternative uses of those resources).

A country or a person is said to have a ‘comparative advantage’ if they have the ability to produce something at a lower opportunity cost than their trade partners.

The forgone opportunities of production are key to understand this concept. It is precisely this that distinguishes absolute advantage from comparative advantage.

To see the difference between comparative and absolute advantage, consider a commercial aviation pilot and a baker. Suppose the pilot is an excellent chef, and she can bake just as well, or even better than the baker. In this case, the pilot has an absolute advantage in both tasks. Yet the baker probably has a comparative advantage in baking, because the opportunity cost of baking is much higher for the pilot.

The freely available economics textbook The Economy: Economics for a Changing World explains this as follows: “A person or country has comparative advantage in the production of a particular good, if the cost of producing an additional unit of that good relative to the cost of producing another good is lower than another person or country’s cost to produce the same two goods.”

At the individual level, comparative advantage explains why you might want to delegate tasks to someone else, even if you can do those tasks better and faster than them. This may sound counterintuitive, but it is not: If you are good at many things, it means that investing time in one task has a high opportunity cost, because you are not doing the other amazing things you could be doing with your time and resources. So, at least from an efficiency point of view, you should specialize on what you are best at, and delegate the rest.

The same logic applies to countries. Broadly speaking, the principle of comparative advantage postulates that all nations can gain from trade if each specializes in producing what they are relatively more efficient at producing, and import the rest: “do what you do best, import the rest”.24

In countries with relative abundance of certain factors of production, the theory of comparative advantage predicts that they will export goods that rely heavily in those factors: a country typically has a comparative advantage in those goods that use more intensively its abundant resources. Colombia exports bananas to Europe because it has comparatively abundant tropical weather. Under autarky, Colombia would find it cheap to produce bananas relative to e.g. apples.

Evidence: Is there empirical support for comparative-advantage theories of trade?

The empirical evidence suggests that the principle of comparative advantage does help explain trade patterns. Bernhofen and Brown (2004)25, for instance, provide evidence using the experience of Japan. Specifically, they exploit Japan’s dramatic nineteenth-century move from a state of near complete isolation to wide trade openness.

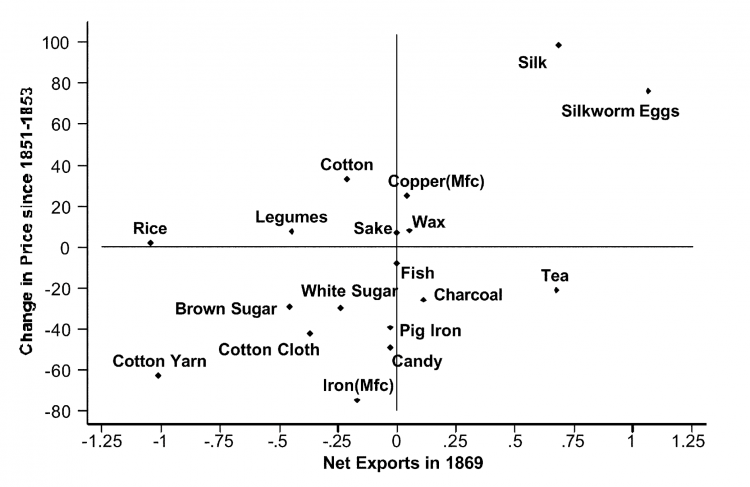

The graph here shows the price changes of the key tradable goods after the opening up to trade. It presents a scatter diagram of the net exports in 1869 graphed in relation to the change in prices from 1851–53 to 1869. As we can see, this is consistent with the theory: after opening to trade, the relative prices of major exports such as silk increased (Japan exported what was cheap for them to produce and which was valuable abroad), while the relative price of imports such as sugar declined (they imported what was relatively more difficult for them to produce, but was cheap abroad).

Net exports and price changes for 1869, Japan – Figure 4 in Bernhofen and Brown (2014)26
japan_bernhoffenbrown2014

Trade diminishes with distance

The resistance that geography imposes on trade has long been studied in the empirical economics literature – and the main conclusion is that trade intensity is strongly linked to geographic distance.

The visualization, from Eaton and Kortum (2002)27, graphs ‘normalized import shares’ against distance. Each dot represents a country-pair from a set of 19 OECD countries, and both the vertical and horizontal axis are expressed on logarithmic scales.

The ‘normalized import shares’ in the vertical axis provide a measure of how much each country imports from different partners (see the paper for details on how this is calculated and normalised), while distance in the horizontal axis corresponds to the distance between central cities in each country (see the paper and references therein for details on the list of cities). As we can see, there is a strong negative relationship. Trade diminishes with distance. Through econometric modeling, the paper shows that this relationship is not just a correlation driven by other factors: their findings suggest that distance imposes a significant barrier to trade.

The fact that trade diminishes with distance is also corroborated by data of trade intensity within countries. The visualization here shows, through a series of maps, the geographic distribution of French firms that export to France’s neighboring countries. The colors reflect the percentage of firms which export to each specific country. As we can see, the share of firms exporting to each of the corresponding neighbors is largest close to the border. The authors also show in the paper that this pattern holds for the value of individual-firm exports – trade value decreases with distance to the border.

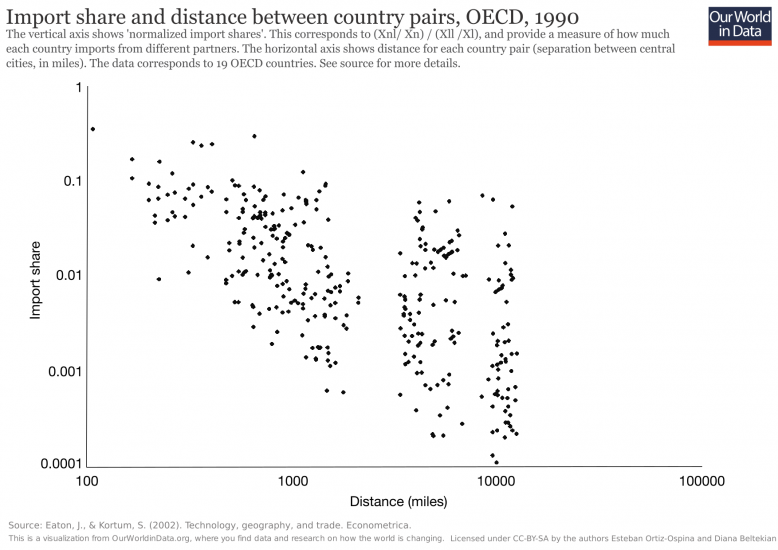

Import share and distance between country pairs, OECD, 1990 – Figure 1 in Eaton and Kortum (2002)28
eatonkortum2002_tradedistance

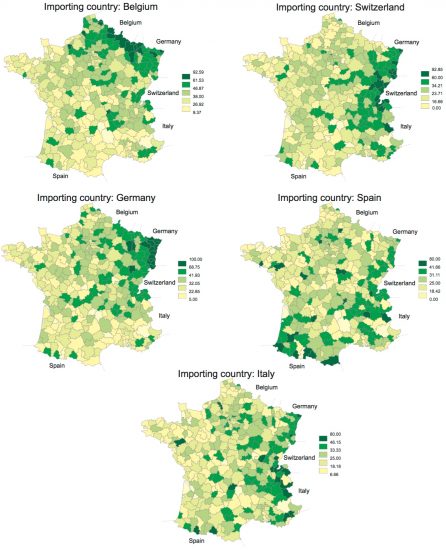

Percentage of firms which export in France, by importing country, 1992 – Figure 2 in Crozet and Koenig (2010)29
france_trade_borders_2010

Institutions

Conducting international trade requires both financial and non-financial institutions to support transactions. Some of these institutions are fairly obvious (e.g. law enforcement); but some are less obvious. For example, the evidence shows that producers in exporting countries often need credit in order to engage in trade.

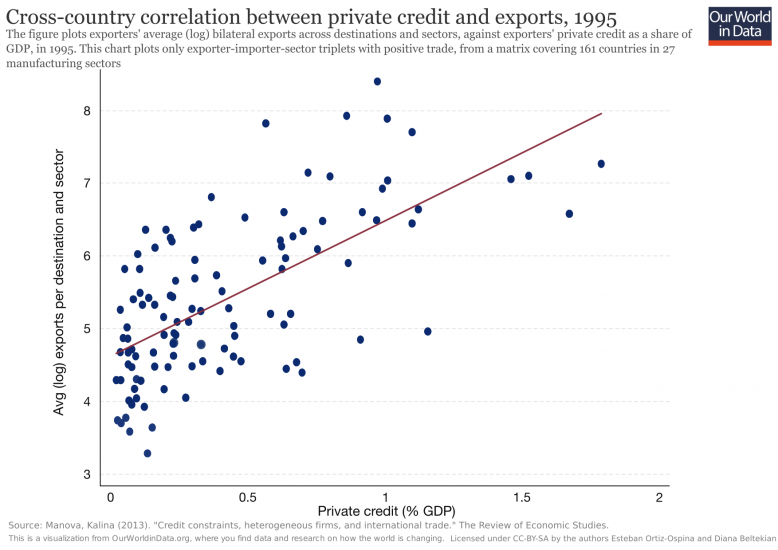

The scatter plot, from Manova (2013)30, shows the correlation between levels in private credit (specifically exporters’ private credit as a share of GDP) and exports (average log bilateral exports across destinations and sectors). As can be seen, financially developed economies – those with more dynamic private credit markets – typically outperform exporters with less evolved financial institutions.

Other studies have shown that country-specific institutions, like the knowledge of foreign languages, for instance, are also important to promote foreign relative to domestic trade (see Melitz 200831).

Cross-country correlation between private credit and exports – Figure 2 in Manova (2013)32
credittrade_manova2013

Increasing returns to scale

The concept of comparative advantage predicts that if all countries had identical endowments and institutions, then there would be little incentives for specialization, because the opportunity cost of producing any good would be the same in every country.

So you may wonder: why is it then the case that in the last few years we have seen such rapid growth in intra-industry trade between rich countries?

The increase in intra-industry between rich countries seems paradoxical under the light of comparative advantage, because in recent decades we have seen convergence in key factors, such as human capital, across these countries.

The solution to the paradox is actually not very complicated: Comparative advantage is one, but not the only force driving incentives to specialization and trade.

Several economists, most notably Paul Krugman, have developed theories of trade in which trade is not due to differences between countries, but instead due to “increasing returns to scale” – an economic term used to denote a technology in which producing extra units of a good becomes cheaper if you operate at a larger scale.

The idea is that specialization allows countries to reap greater economies of scale (i.e. to reduce production costs by focusing on producing large quantities of specific products), so trade can be a good idea even if the countries do not differ in endowments, including culture and institutions.

These models of trade, often referred to as ‘New Trade Theory’, are helpful to explain why in the last few years we have seen such rapid growth in two-way exchanges of goods within industries between developed nations.

In a much cited paper, Evenett and Keller (2002)33 show that both factor endowments and increasing returns help explain production and trade patterns around the world.

You can learn more about New Trade Theory, and the empirical support behind it, in Krugman’s Nobel lecture.

There are dozens of official sources of data on international trade, and if you compare these different sources, you will find that they do not agree with one another. Even if you focus on what seems to be the same indicator for the same year in the same country, discrepancies are large.

For example, for China in 2010, the estimated total value of goods exports was $1.48 trillion according to World Bank Data, but it was $1.58 trillion according to WTO Data. That’s a difference of about 7%, or a hundred billion US dollars.

Such differences between sources can also be found for rich countries where statistical agencies tend to follow international reporting guidelines more closely. In Italy, for example, Eurostat figures of the value of exported goods in 2015 are 10% higher than the merchandise trade figures published by the OECD.

And there are also large bilateral discrepancies within sources. According to IMF data, for example, the value of goods that Canada reports exporting to the US is almost $20 billion more that the value of goods that the US reports importing from Canada.

Here we explain how international trade data is collected and processed, and why there are such large discrepancies.

What data is available?

The data hubs from several large international organizations publish and maintain extensive cross-country datasets on international trade. Here’s a list of the most important ones:

In addition to these sources, there are also many other academic projects that publish data on international trade. These projects tend to rely on data from one or more of the sources above; and they typically process and merge series in order to improve coverage and consistency. Three important sources are:

How large are discrepancies between sources?

In the visualization here we provide a comparison of the data published by several of the sources listed above, country by country, since 1955 up until today.

For each country, we exclude trade in services, and we focus only on estimates of the total value of exported goods, expressed as shares of GDP.37

As we can clearly see in this chart, different data sources tell often very different stories. And this is true, to varying degrees, across all countries and years. You can use the option labeled ‘change country’, at the bottom of the chart, to focus on any country.

Constructing this chart was demanding. It required downloading trade data from many different sources, collecting the relevant series, and then standardising them so that the units of measure and the geographical territories were consistent.

All series, except the two long-run series from CEPII and NBER-UN, were produced from data published by the sources in current US dollars, and then converted to GDP shares using a unique source (World Bank).38

So, if all series are in the same units (share of national GDP), and they all measure the same thing (value of goods exported from one country to the rest of the world), what explains the differences?

Let’s dig deeper to understand what’s going on.

Why doesn’t the data add up?

Differences in guidelines used by countries to record and report trade data

Broadly speaking, there are two main approaches used to estimate international merchandise trade:

Under these two approaches, it is common to distinguish between ‘traded merchandise’ and ‘traded goods’. The distinction is often made because goods simply being transported through a country (i.e. goods in transit) are not considered to change the stock of material resources of a country, and are hence often excluded from the more narrow concept of ‘merchandise trade’.

Also, adding to the complexity, countries often rely on measurement protocols that are developed alongside these approaches and concepts that are not perfectly compatible to begin with. In Europe, for example, countries use the ‘Compilers guide on European statistics on international trade in goods’.

Measurement error and other inconsistencies

Even when two sources rely on the same broad accounting approach, discrepancies arise because countries fail to adhere perfectly to the protocols.

In theory, for example, the exports of country A to country B should mirror the imports of country B from country A. But in practice this is rarely the case because of differences in valuation. According to the BPM6, imports and exports should be recorded in the balance of payments accounts on a ‘free on board (FOB) basis’, which means using prices that include all charges up to placing the goods on board a ship at the port of departure. Yet many countries stick to FOB values only for exports, and use CIF values for imports (CIF stands for ‘Cost, Insurance and Freight’, and includes the costs of transportation).40

The chart here gives you an idea of how large import-export asymmetries are. Shown are the differences between the value of goods that each country reports exporting to the US, and the value of goods that the US reports importing from the same countries. For example, for China, the figure in the chart corresponds to the “Value of merchandise imports in the US from China” minus “Value of merchandise exports from China to the US”.

The differences in the chart here, which are both positive and negative, suggest that there is more going on than differences in FOB vs CIF values. If all asymmetries were coming from CIF-FOB differences, then we should only see positive values in the chart (recall that, unlike FOB values, CIF values include the cost of transportation, so CIF values are larger).

What else is going on here?

Another common source of measurement error relates to the inconsistent attribution of trade partners. An example is failure to follow the guidelines on how to treat goods passing through intermediary countries for processing or merchanting purposes. As global production chains become more complex, countries find it increasingly difficult to unambiguously establish the origin and final destination of merchandise, even when rules are established in the manuals. 41

And there are still more potential sources of discrepancies. For example differences in customs and tax regimes, and differences between “general” and “special” trade systems (i.e. differences between statistical territories and actual country borders, which do not often coincide because of things like ‘custom free zones’).42

Even when two sources have identical trade estimates, inconsistencies in published data can arise from differences in exchange rates. If a dataset reports cross-country trade data in US dollars, estimates will vary depending on the exchange rates used. Different exchange rates will lead to conflicting estimates, even if figures in local currency units are consistent.

Wrapping up

Asymmetries in international trade statistics are large and they arise for a variety of reasons. These include conceptual inconsistencies across measurement standards, as well as inconsistencies in the way countries apply agreed protocols. Here’s a checklist of issues to keep in mind when comparing sources.

  • Differences in underlying records: is trade measured from National Accounts data rather than directly from custom or tax records?
  • Differences in import and export valuations: are transactions valued at FOB or CIF prices?
  • Inconsistent attribution of trade partners: how is the origin and final destination of merchandise established?
  • Difference between ‘goods’ and ‘merchandise’: how are re-importing, re-exporting, and intermediary merchanting transactions recorded?
  • Exchange rates: how are values converted from local currency units to the currency that allows international comparisons (most often the US-$)?
  • Differences between ‘general’ and ‘special’ trade system: how is trade recorded for custom-free zones?
  • Other issues: Time of recording, confidentiality policies, product classification, deliberate misinvoicing for illicit purposes.

These factors have long been recognized by many organizations producing trade data. Indeed, international organizations often incorporate corrections, in an attempt to improve data quality along these lines.

The OECD’s Balanced International Merchandise Trade Statistics, for example, uses its own approach to correct and reconcile international merchandise trade statistics.43

The corrections applied in the OECD’s ‘balanced’ series make this the best source for cross-country comparisons. However, this dataset has low coverage across countries, and it only goes back to 2011. This is an important obstacle, since the complex adjustments introduced by the OECD imply we can’t easily improve coverage by appending data from other sources. At Our World in Data we have chosen to rely on CEPII as the main source for exploring long-run changes in international trade; but we also rely on World Bank and OECD data for up-to-date cross-country comparisons.

There are two key lessons from all of this. The first lesson is that, for most users of trade data out there, there is no obvious way of choosing between sources. And the second lesson is that, because of statistical glitches, researchers and policymakers should always take analysis of trade data with a pinch of salt. For example, in a recent high-profile report, researchers attributed mismatches in bilateral trade data to illicit financial flows through trade misinvoicing (or trade-based money laundering). As we show here, this interpretation of the data is not appropriate, since mismatches in the data can, and often do arise from measurement inconsistencies rather than malfeasance.44

Hopefully the discussion and checklist above can help researchers better interpret and choose between conflicting data sources.

Data Sources

International Historical Statistics (by Brian Mitchell)

  • Data: Aggregate trade (current value), bilateral trade with main trading partners (current value), and major commodity exports by main exporting countries. No data on trade as share of GDP is readily available.
  • Geographical coverage: Countries around the world
  • Time span: Long time series with annual observations – from 19th century up to today (2010)
  • Available at: The books are published in three volumes covering more than 5000 pages.45

At some universities you can access the online version of the books where data tables can be downloaded as ePDFs and Excel files. The online access is here.

  • Data from the 19th century onwards for countries around the world is available in the International Historical Statistics (IHS). These statistics – originally published under the editorial leadership of Brian Mitchell (since 1983) – are a collection of data sets taken from many primary sources, including both official national and international abstracts. This is quite an extensive dataset going back as far as 1891, however, currencies include kronen, schillings etc. which would further need to be looked into as to how to convert to US$ and the excel file download also needs formatting before it can be suitably workable.
  • Penn World Tables

    • Data: Real and PPP-adjusted GDP in US millions of dollars, national accounts (household consumption, investment, government consumption, exports and imports), exchange rates and population figures.
    • Geographical coverage: Countries around the world
    • Time span: from 1950-2017 (version 9.1)
    • Available at: Online here
    • Feenstra, Robert C., Robert Inklaar and Marcel P. Timmer (2015), “The Next Generation of the Penn World Table” forthcoming American Economic Review, available for download at www.ggdc.net/pwt

    Correlates of War Bilateral Trade

    • Data: Total national trade and bilateral trade flows between states. Total imports and exports of each country in current US millions of dollars and bilateral flows in current US millions of dollars
    • Geographical coverage: Single countries around the world
    • Time span: from 1870-2009
    • Available at: Online at www.correlatesofwar.org
    • This data set is hosted by Katherine Barbieri, University of South Carolina, and Omar Keshk, Ohio State University. Authors note in their ‘COW Trade Data Set Codebook’: “We advise against using the dyadic data file to produce any national or global totals, based on aggregations of the partner trade.”

    World Bank – World Development Indicators

    • Data: Trade (% of GDP) and many more specific series: trade in merchandise, trade in services, trade in high-technology, trade in ICT goods, trade in ICT services – always exports and imports separately. Also export and import value index and volume index.
    • Geographical coverage: Countries and world regions
    • Time span: Annual since 1960
    • Available at: Online at http://data.worldbank.org

    UN Comtrade

    • Data: Bilateral trade flows by commodity
    • Geographical coverage: Countries around the world
    • Time span: 1962-2013
    • Available at: Online here
    • Bilateral trade flows can be sorted by goods or services, monthly or annually, with choice of classification (including HS codes, SITC, and BEC). Data is likely to be very time consuming to collate as there is no bulk data download unless a user has a premium site license.

    UNCTADstat

    • Data: Many different measures, including trade by volumes and value
    • Geographical coverage: Countries around the world
    • Time span: For some series, data is available since 1948 – mostly annual, sometimes quarterly.
    • Available at: Online here
    • UNCTADstat reports export and import data between 1995 and 2016 but primarily to different regional groupings than any one country, so it’s probably not best suited to comparing country-to-country bilateral flows.

    Eurostat – COMEXT

    • Data: Trade flows (also by commodity)
    • Geographical coverage: Europe (EU and EFTA)
    • Time span: Mostly since 1988
    • Available at: Online here
    • Also, the Eurostat website ‘Statistics Explained’ publishes up-to-date statistical information on international trade in goods and services.

    World Trade Organization – WTO

    • Data: Many series on tariffs and trade flows
    • Geographical coverage: Countries around the world
    • Time span: Since 1948 for some series
    • Available at: Online here
    • The WTO offers a bulk download of trade datasets which can be found here. Amongst these are annual WTO merchandise trade values and WTO-UNCTAD-ITC annual trade in services datasets. The former is available from 1948 – 2017, workable, with very little additional formatting needed. However, observations are country groups, such as the EU28, the BRICS etc. rather than country-by-country values. Otherwise, the WTO’s Statistics Database (SDB) has extensive time series on international trade, by country with their trading partners. Again, trading partners are primarily restricted to country groupings rather than individual nations.

    Fouquin and Hugot (CEPII 2016) – TRADHIST dataset

    • Data: Many different data sets related to international trade, including trade flows by commodity geographical variables, and variables to estimate gravity models
    • Geographical coverage: Countries around the world
    • Available at: Online here
    • TRADHIST Bilateral Trade Historical Series: New Dataset 1827-2014 provides extensive dyadic trade data, with 97 percent of the observations from 1948 to today drawing on the IMF’s Direction of Trade Statistics (DOTS) dataset.

    NBER-United Nations Trade Data, 1962-2000

    • Data: Export and import values and volumes by commodity
    • Geographical coverage: Single countries
    • Time span: 1962-2000
    • Available at: Online here
    •  This data is also available from the Center for International Data. Bilateral trade data value estimates are very close to that of the World Bank’s imports of goods and services time series.

    Federico-Tena World Trade Historical Database

    • Data: This website contains annual series of trade by polity from 1800 to 1938 which sum as series for continent and world.
    • Geographical coverage: Countries around the world
    • Time span: 1800-1938
    • Available at: Federico, G., Tena Junguito, A. (2016). World trade, 1800-1938: a new data-set. EHES Working Papers in Economic History, n. 93. Online here

    Other historical trade data sets

    • Data on UK bilateral trade for the time 1870-1913 was collected by David S. Jacks. It is downloadable in excel format here.
    • For the time 1870-1913 21,000 bilateral trade observations can be found in Mitchener and Weidenmier (2008) – Trade and empire, available in the Economic Journal here.
    • Data on UK, Germany, France, and US between mid-19th to 20th Century can be found here.
    • Data on Developing Country Export – in 1840, 1860, 1880 and 1900 – by John Hanson is available here.
    • Data on trade between England and Africa during the period 1699-1808 is available on the Dutch Data Archiving and Networked Services. It was compiled by Marion Johnson.
